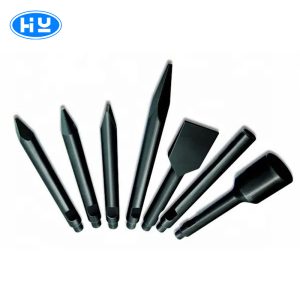

Hydraulic breaker chisel
Overview of Hydraulic breaker chisel
The chisel of the breaker hammer is an important part of the breaker hammer, which can be used to knock and break objects, such as rocks, concrete, etc. chisels are typically made from high-strength steel and may be hardened, plated or otherwise surface treated to increase their hardness and wear resistance.
According to different uses, there are many different types and specifications of chisels for hydraulic breakers, such as square-head chisels, round-head chisels, flat chisels, etc. When using a breaker, you should choose a suitable chisel according to the specific situation to ensure safe and effective crushing operations!
Parameters of Hydraulic breaker chisel
Model | Diameter(MM) | Length | Weight | Applicable excavator |
(MM) | (KGS) | (T) | ||
HYQG45 | 45 | 500 | 8 | 1.5-3 |
HYQG53 | 53 | 600 | 12 | 3-5 |
HYQG68 | 68 | 700 | 16 | 5-7 |
HYQG75 | 75 | 750 | 22 | 7-9 |
HYQG85 | 85 | 850 | 48 | 9-12 |
HYQG100 | 100 | 1000 | 50 | 13-15 |
HYQG120 | 120 | 1200 | 115 | 16-19 |
HYQG135 | 135 | 1300 | 125 | 19-23 |
HYQG140 | 140 | 1300 | 130 | 20-24 |
HYQG150 | 150 | 1500 | 190 | 30 |
HYQG165 | 165 | 1500 | 220 | 30-36 |
HYQG175 | 175 | 1600 | 260 | 36-40 |
HYQG180 | 180 | 1700 | 280 | 40 |
HYQG185 | 185 | 1700 | 300 | 40-45 |
HYQG190 | 190 | 1700 | 320 | 46-50 |
HYQG195 | 195 | 1700 | 340 | 48-55 |
HYQG200 | 200 | 1700 | 370 | 55-60 |
Performance characteristics of Hydraulic breaker chisel
High strength: The hammer drill rod is made of high-quality alloy steel. Through advanced processing and heat treatment technology, it has high strength and impact resistance, and can withstand high-intensity impacts and blows.
Wear resistance: The impact part of the hammer drill rod is usually hardened or surface-coated to improve its wear resistance and service life.
Anti-corrosion: The surface treatment of the hammer drill rod is also anti-corrosion and can be used in harsh environmental conditions and maintain good performance.
High temperature performance: The hammer drill rod can be used in high temperature environments and has good thermal stability and high temperature resistance.
Application range of Hydraulic breaker chisel
Breaker hammer Tools are widely used in various industries and fields, such as mining, petroleum, metallurgy, construction, etc. In mining, breaker hammer Toolss are used to break and excavate rocks, frozen soil and other hard materials to assist large machinery in excavation operations. In the construction field, breaker Toolss are used to demolish buildings and concrete structures to create working surfaces for new construction.
