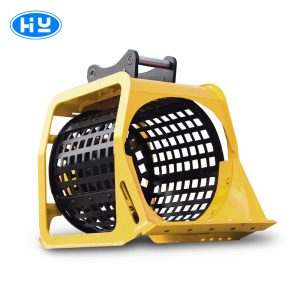

Excavator rotating screen bucket
Excavator rotary screen bucket product overview:
The excavator rotary screen bucket is a very practical tool that can tap the potential of machine attachments and improve the efficiency and productivity of the excavator. Excavator rotating screen buckets are widely used in municipal administration, agriculture, forestry, water conservancy, earthworks, etc., and are especially suitable for screening materials with smaller particles.
Excavator rotary screen bucket product parameters:
Model |
HY02 |
HY08 |
HY12 |
HY16 |
HY18 |
Machine Class(t) |
2-4 |
6-10 |
12-17 |
18-23 |
25-36 |
Rotary Screen Diameter(mm) |
610 |
810 |
1000 |
1350 |
1500 |
Rotating Speed(r/min) |
60 |
65 |
65 |
65 |
65 |
Working Pressure(bar) |
150 |
220 |
230 |
250 |
250 |
Oil Flow(L/min) |
30 |
60 |
80 |
110 |
110 |
Weight(kg) |
175 |
630 |
1020 |
1920 |
2430 |
Excavator rotary screen bucket product features:
The rotating screen bucket of the excavator can generate high-frequency vibration, which causes the materials to be bounced off at a small amplitude to prevent the materials from clogging the screen. The screen hole specifications of the rotating screen bucket can be selected according to the size of the material, which is easy to replace and greatly reduces machine loss and operation difficulty.
Excavator rotary screen bucket product summary:
The screening system of the rotating screen bucket is composed of the resonant power supply of the rotating screen bucket, the oscillator, the outer mesh ring and the resonance ring. The rotating sieve bucket of the excavator has many uses, such as screening sand and gravel, separating large and small lumps and powdery materials, etc. It is suitable for various types of materials, such as materials with smaller particles, soft materials, materials with higher mud content, etc.
